5" Backlit Jet Body Assembly | 3/4" Ribbed Barb x 3/8" Barb | RD203-5005-001
$39.99
$34.99

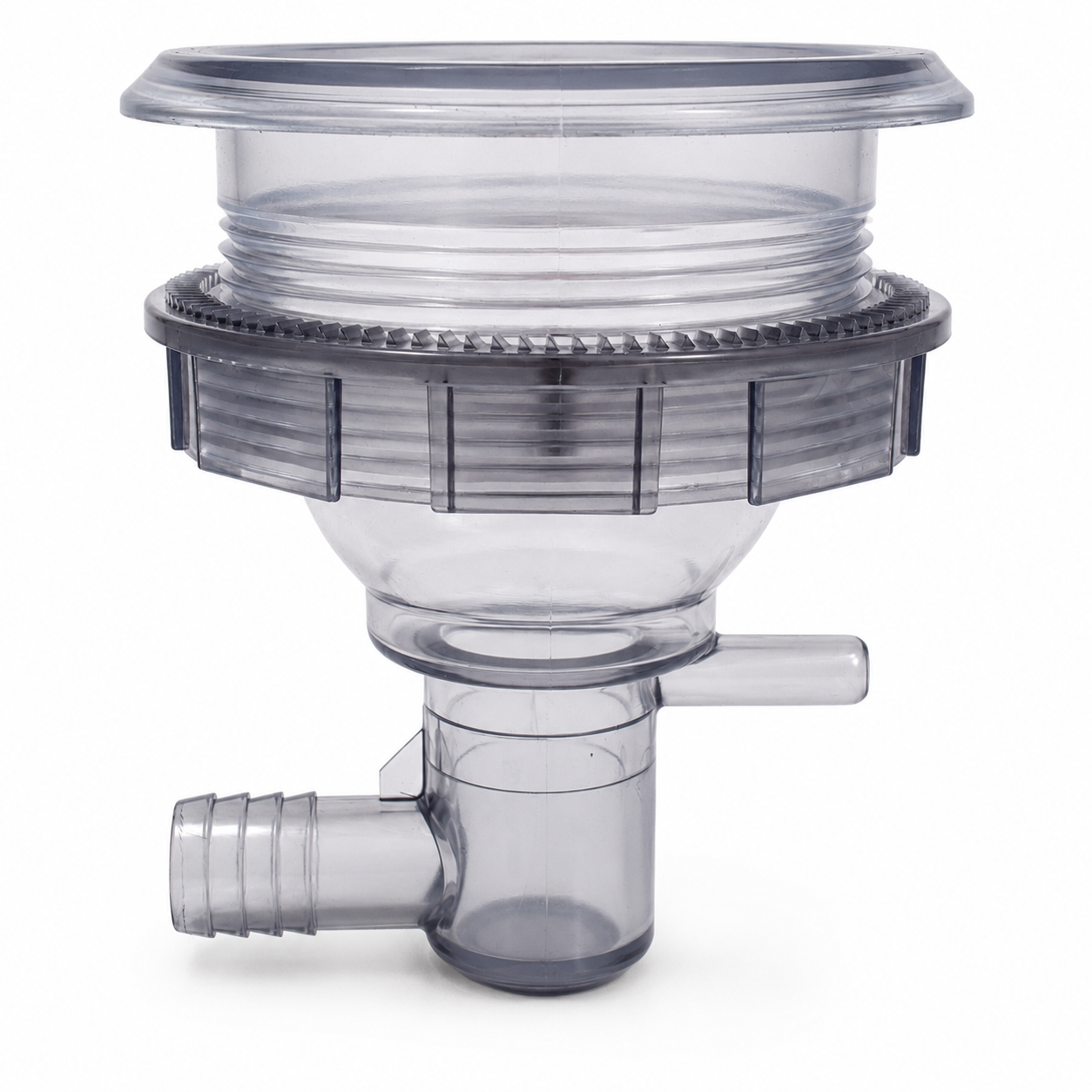

The Rising Dragon RD203-5005-001 is a genuine OEM-quality 5-inch screw-in jet body designed for spas utilizing Rising Dragon's illuminated jet system.
Unlike standard white jet bodies, the clear engineered body allows LED light to travel through the housing, creating an attractive backlit effect around compatible jet internals and faces. This makes it ideal for premium spa installations where both hydrotherapy performance and lighting aesthetics are important.
The body utilizes a 3/4-inch ribbed barb water connection and 3/8-inch barb air connection, simplifying installation with flexible plumbing. A retaining nut is included for secure mounting.
Built from durable spa-grade engineered plastic, the RD203-5005-001 is suitable for OEM manufacturing, spa refurbishment, and replacement repairs.
Specifications
Manufacturer: Rising Dragon
Part Number: RD203-5005-001
Product Type: Spa Jet Body Assembly
Jet Size: 5 Inch
Connection Style: Screw-In
Water Connection: 3/4" Ribbed Barb (RB)
Air Connection: 3/8" Barb (B)
Body Material: Clear engineered spa-grade plastic
Includes Nut: Yes
Application: Spa & Hot Tub Jet Body
Key Features
- Genuine Rising Dragon component
- Part Number: RD203-5005-001
- 5-inch screw-in jet body
- Clear body designed for LED backlighting
- 3/4" Ribbed Barb (RB) water connection
- 3/8" Barb air connection
- Includes retaining nut
- Compatible with Rising Dragon illuminated jet systems
- Ideal for new construction and replacement installations
Q: Is this a backlit jet body?
A: Yes. The clear body is designed to transmit light from compatible Rising Dragon LED lighting systems to create illuminated spa jets.
Q: What plumbing connections does this body use?
A: It features a 3/4-inch ribbed barb (RB) water connection and a 3/8-inch barb air connection.
Q: Is the retaining nut included?
A: Yes. The mounting nut is included.
Q: Is a gasket included?
A: No verified gasket is included with this model.
Q: Is this a screw-in jet body?
A: Yes. It is designed as a screw-in style 5-inch jet body.
Q: Can this replace a standard white jet body?
A: Mechanically it may fit compatible systems, but it is specifically designed for spas utilizing Rising Dragon's LED backlighting system.
Q: Why is the body clear?
A: The clear housing allows LED light to pass through the body and illuminate compatible jet internals for enhanced visual effects.
