Spa & Hot Tub Fittings: Types, Plumbing components & Replacement Resources
Spa fittings are the components that connect, direct, control and distribute water or air throughout a hot tub's plumbing system.
From jet bodies and suction fittings to manifolds, unions and air controls, each component serves a specific purpose in helping the spa operate as designed.
Rising Dragon manufactures spa fittings and related plumbing components in a variety of sizes and configurations. This guide explains common fitting types, how they work, and what to consider when identifying replacement parts.
What Are Spa Fittings?
Spa fittings are components used to connect plumbing lines, equipment and water or air outlets within a spa or hot tub.
Some fittings connect pipes and hoses, while others control airflow, distribute water, support filtration or provide a connection for spa jets.
A typical hot tub plumbing system may include:
- Spa jet bodies and housings
- Suction fittings
- Water and air manifolds
- Air controls and connectors
- Pump and equipment unions
- Filter housings and connections

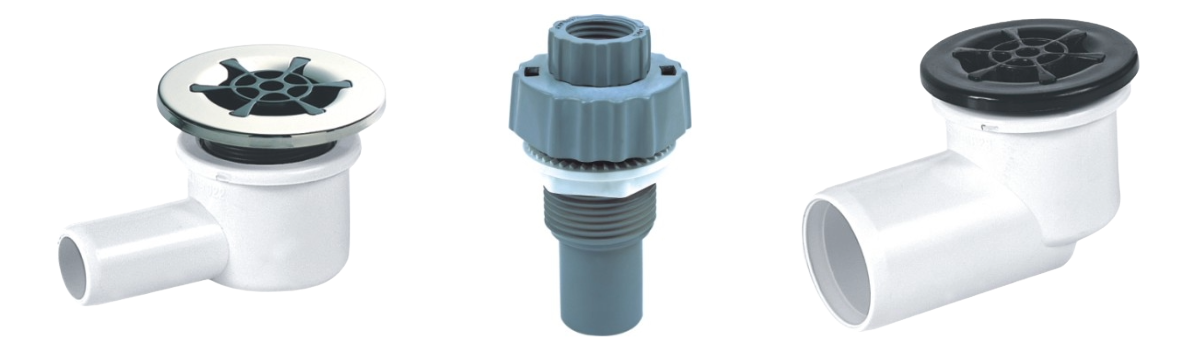

- Drain fittings
- Gaskets and seals
Although many fittings look similar, differences in diameter, connection type, material and installation design can affect compatibility.
Understanding these differences is important when selecting replacement spa plumbing components.
UNDERSTANDING THE DIFFERENT TYPES OF SPA FITTINGS
Spa plumbing systems use several types of fittings, each designed for a particular function.

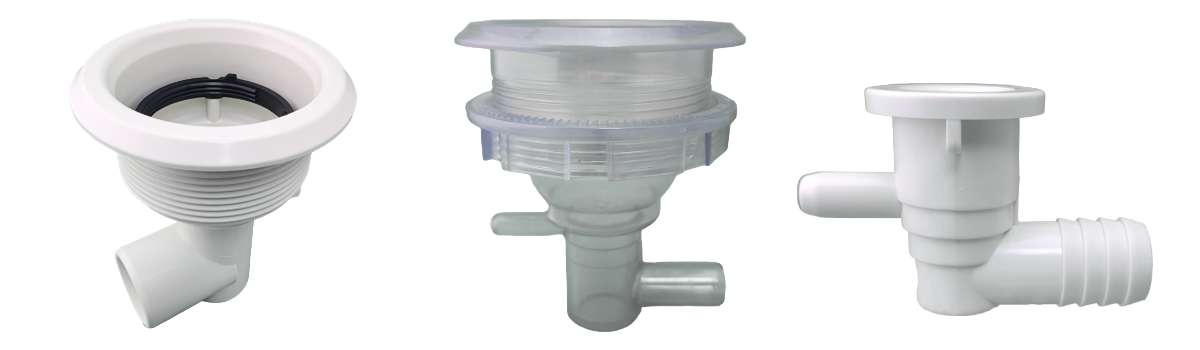

Spa Jet Bodies and Housings
A spa jet body is the stationary housing installed through the spa shell. It connects the spa's plumbing to the removable jet internal.
Depending on the design, jet bodies may include separate water and air connections that allow the two flows to mix within the jet assembly.
Jet bodies can differ in:
- Shell opening requirements
- Water inlet size
- Air inlet size and configuration
- Jet internal connection design
- Body depth and installation clearance
A replacement jet body must be compatible with the intended jet internal and the existing plumbing connections.

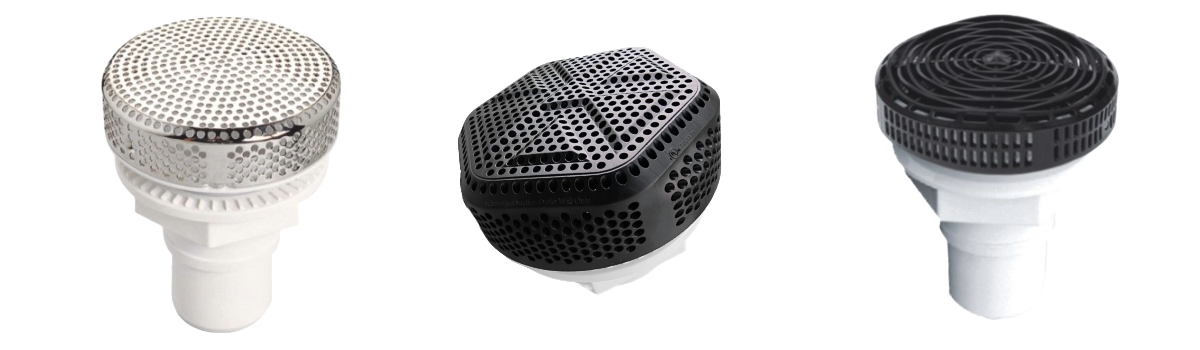

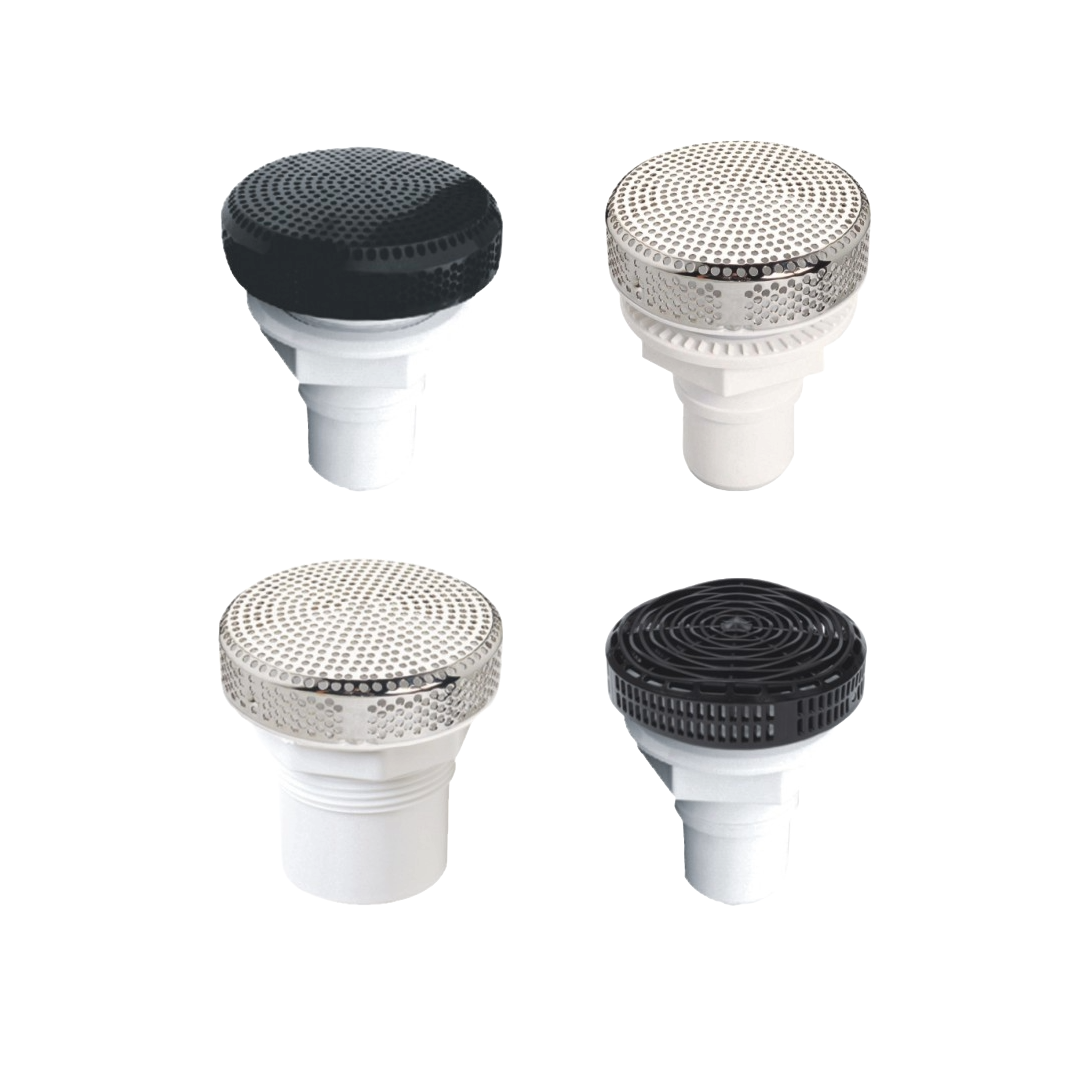

Suction Fittings
Suction fittings are components used where water enters the spa's circulation or jet pump plumbing.
They are commonly installed in the spa shell or other designated water intake locations.
Suction assemblies may include a cover, housing and plumbing connection. Their design and installation must meet the applicable safety requirements for the spa.
When replacing a suction fitting, it is important to verify the approved assembly, flow rating, dimensions and compatibility with the existing installation.

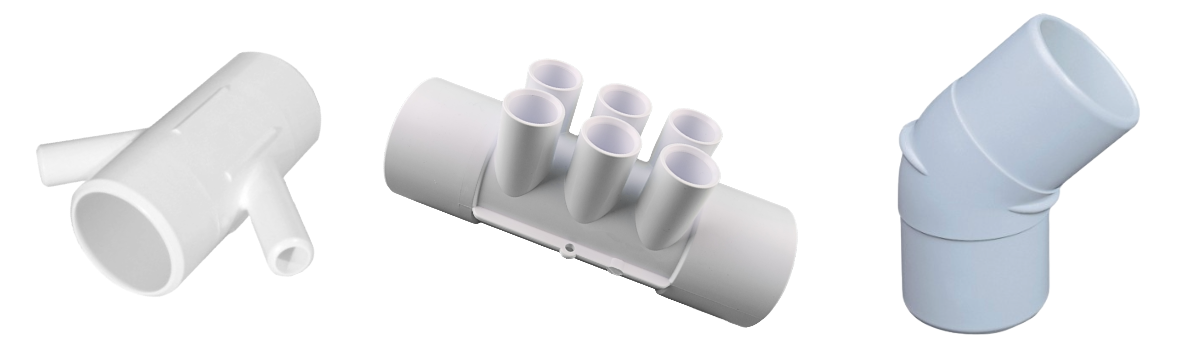

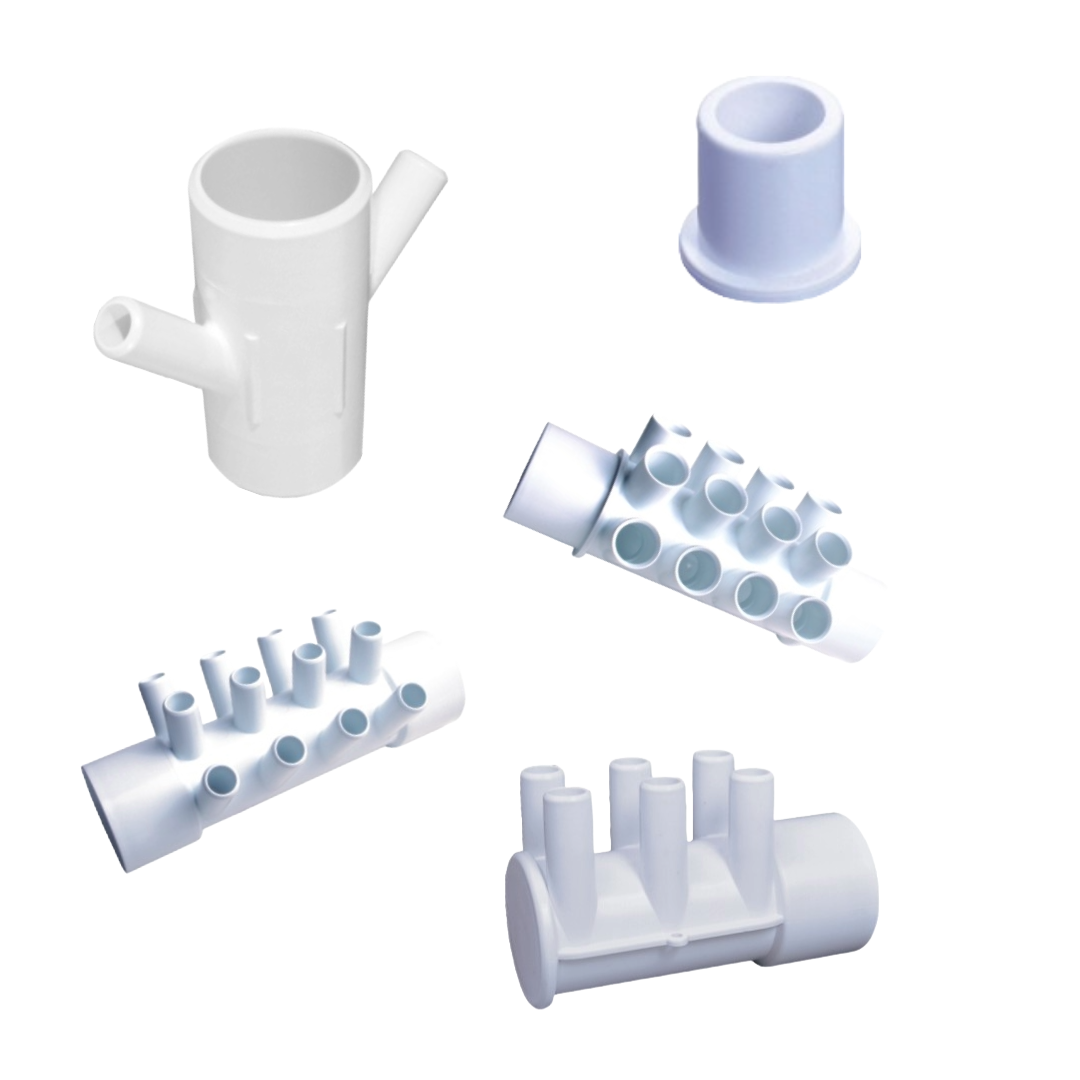

Spa Manifolds and Plumbing Connectors
Spa manifolds distribute water or air from a larger supply line into multiple smaller plumbing lines.
They are commonly used in hot tub plumbing systems where several jets or components are connected to a shared supply.
Manifolds can vary in:
- Main inlet diameter
- Number of outlets
- Outlet diameter
- Straight or angled configuration
- Water or air application
When choosing a replacement manifold, compare the complete connection layout rather than relying on the number of outlets alone.

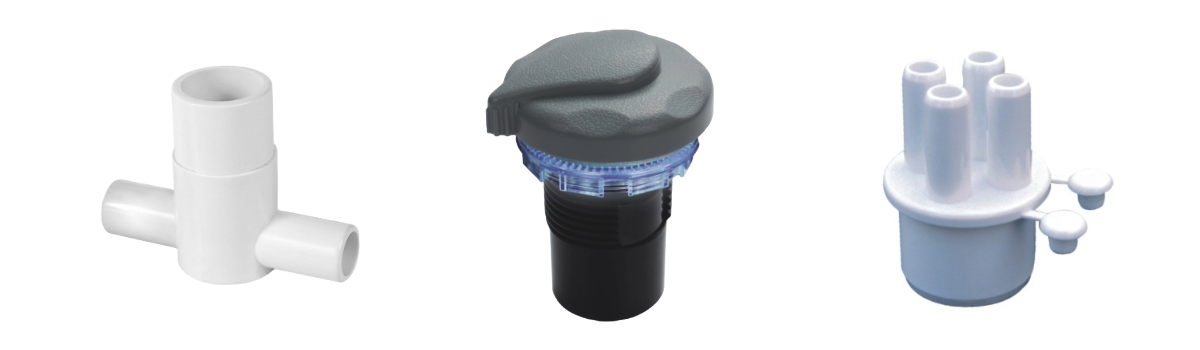

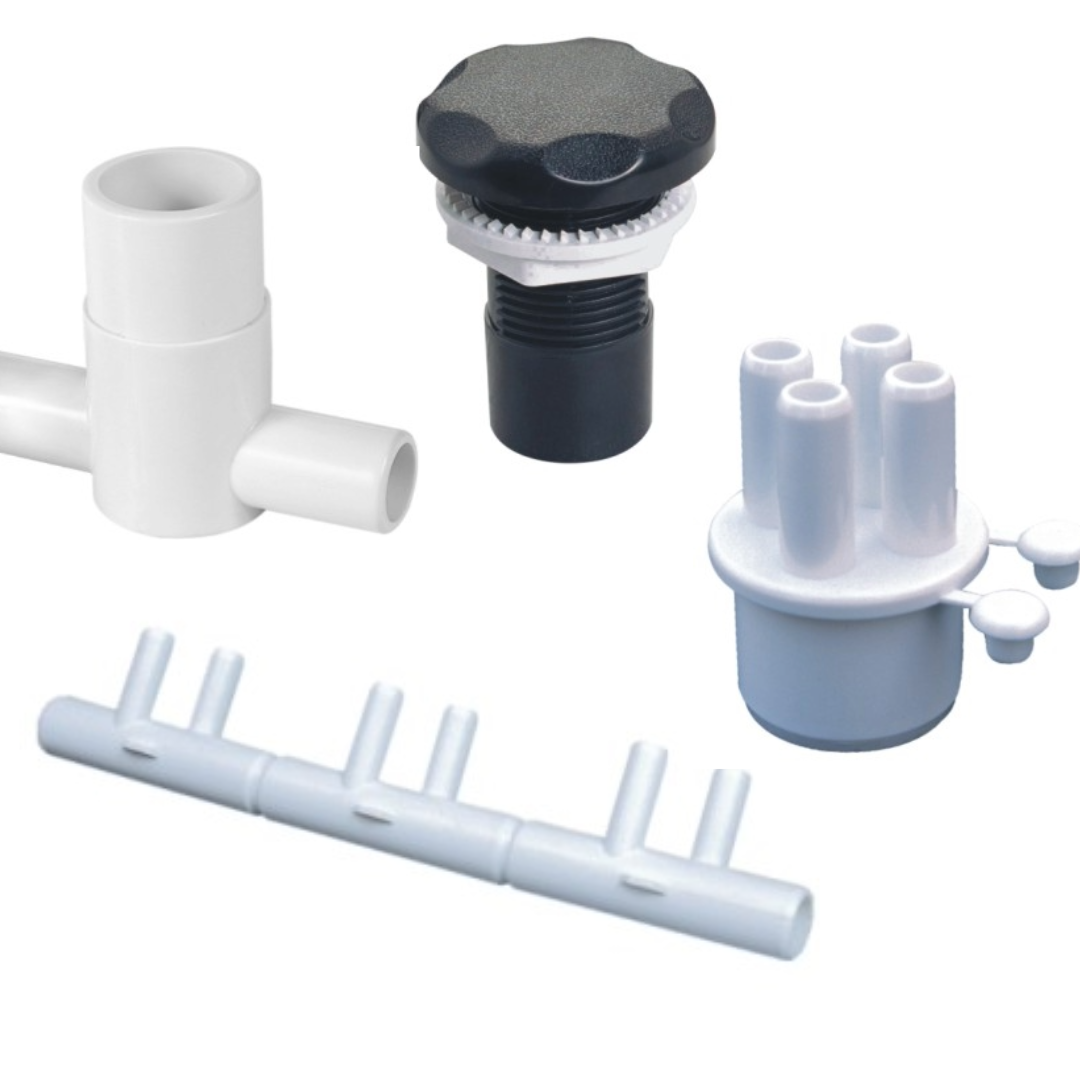

Air Controls and Air Fittings
Air fittings are used to connect or regulate airflow within a spa's plumbing system.
In many spa jet systems, air is drawn into the water stream to change the feel and intensity of the massage.
Air controls allow users to adjust the amount of air entering compatible jet systems.
Other air fittings connect tubing or distribute air to multiple locations.
Air fitting compatibility depends on the tubing dimensions, connection style and intended application.

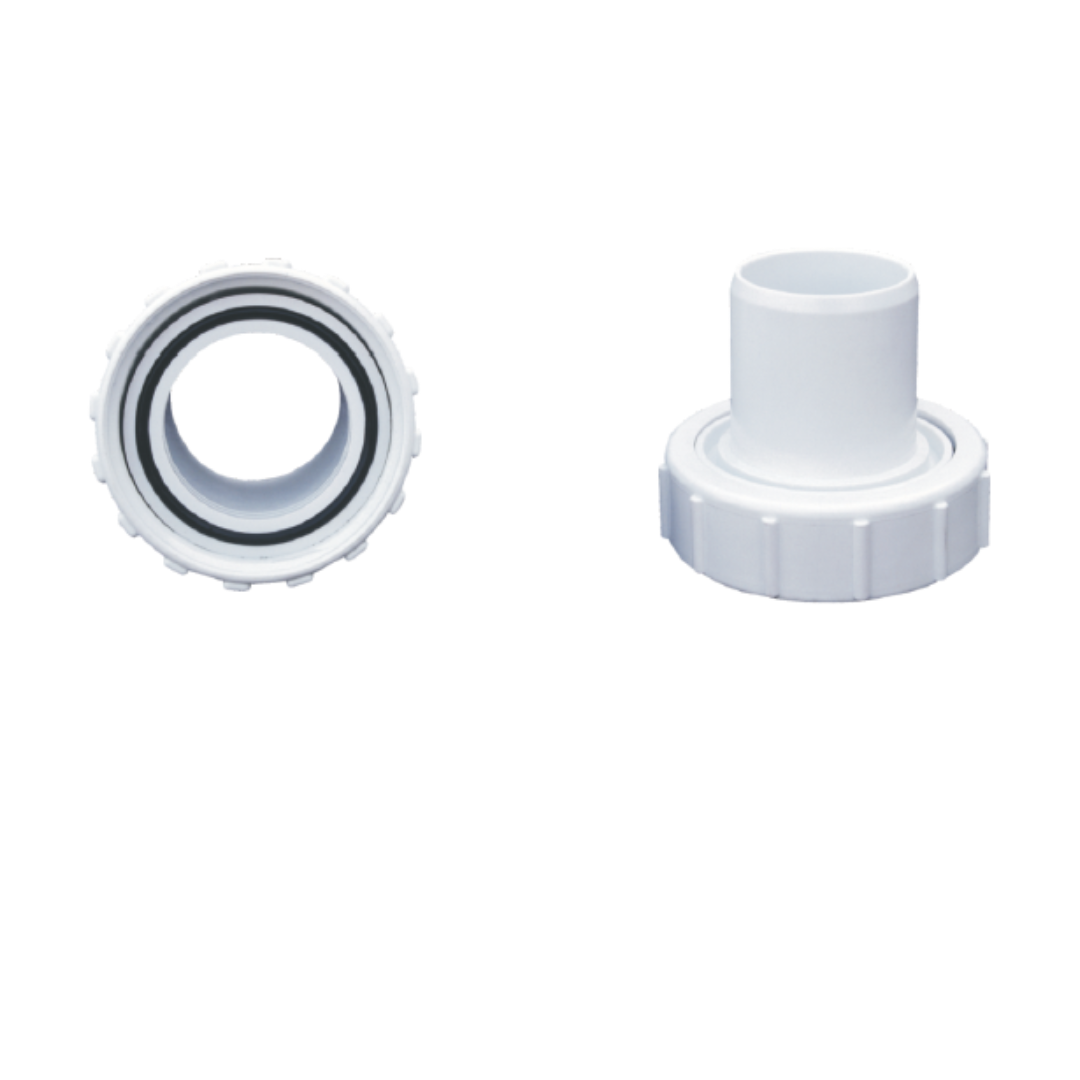

Spa Unions
Spa unions are removable plumbing connections commonly used near pumps, heaters, filters and other equipment.
A union allows connected equipment to be disconnected for servicing without cutting the plumbing, provided the installation is designed for that purpose.
Spa unions may differ in:
- Nominal connection size
- Thread design
- Tailpiece configuration
- Gasket or O-ring design
- Equipment compatibility
Not all unions with the same nominal size are interchangeable. Always compare the complete connection design before purchasing a replacement.

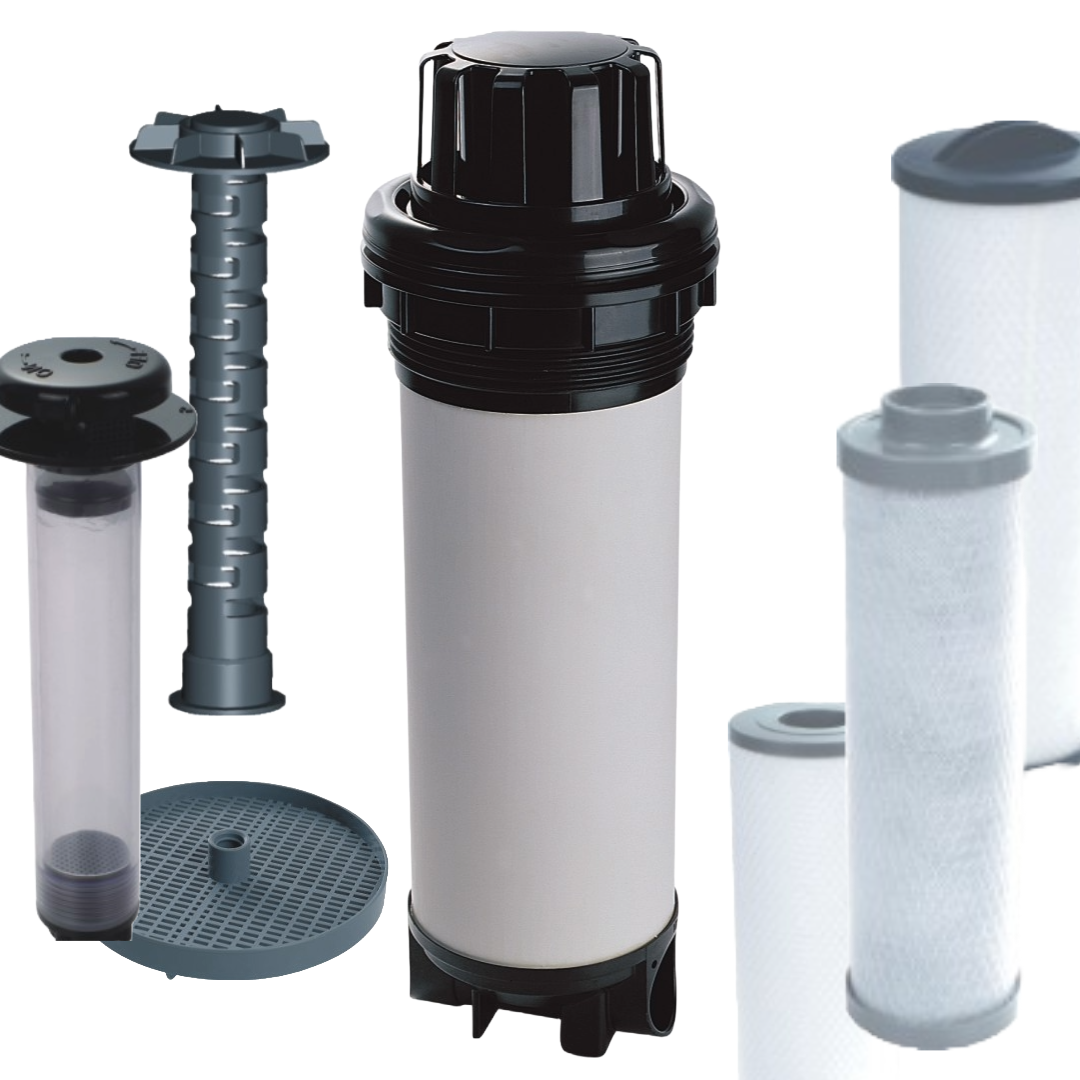

Spa Filter Housings and Filtration Components
Spa filtration components help support the movement and filtering of water within the hot tub system.
Depending on the design, these components may include filter housings, mounting connections, plumbing adapters and related fittings.
When replacing filtration components, confirm the existing housing style, connection dimensions and equipment requirements.
HOW DO SPA FITTINGS WORK TOGETHER?
A hot tub uses a connected plumbing system to move water through its equipment and return it to the spa.
Although plumbing layouts vary by manufacturer, a typical jet system follows a general process:
- Water intake: Water enters the plumbing system through designated suction or intake fittings.
- Pump circulation: The pump moves water through the connected plumbing.
- Water distribution: Pipes and manifolds direct water toward the appropriate jets or outlets.
- Air introduction: Compatible jet systems may draw air into the moving water through separate air plumbing.
- Jet delivery: Water exits through the spa jets, creating the selected flow or massage pattern.
Additional plumbing circuits may support filtration, heating, draining and other spa functions.
Each connection must be correctly sized, installed and sealed to support proper operation.
SPA FITTING SIZES AND CONNECTION DIFFERENCES
Spa fittings are available in a variety of sizes and connection configurations.
A fitting's nominal size does not always equal its actual measured outside or inside diameter.
For example, a fitting identified as a 1.5-inch plumbing connection may not measure exactly 1.5 inches across every surface.
Two fittings with the same advertised size may also have different connection styles.
Important details to compare include:
- Nominal plumbing size
- Actual inside and outside diameters
- Slip, spigot, threaded or barbed connections
- Hose or pipe compatibility
- Number and arrangement of ports
- Available installation space
- Gasket or seal requirements
- Material and intended application
Do not select a replacement fitting based on appearance or nominal size alone.
For best results, compare the original part number and manufacturer's specifications whenever available.
CAN SPA AND HOT TUB FITTINGS BE REPLACED?
Many spa plumbing fittings can be replaced when they become cracked, damaged, worn or begin leaking.
However, the difficulty of replacement depends on the fitting's location and how it connects to the surrounding plumbing.
Some equipment unions and accessible components can be removed during routine service. Other fittings may be permanently bonded to plumbing lines or installed behind the spa shell.
Replacement may require:
- Draining the spa to an appropriate level
- Accessing the plumbing behind the cabinet
- Removing damaged connections
- Preparing or replacing plumbing lines
- Installing the correct replacement component
- Using the appropriate sealing or joining method
- Testing the completed installation for leaks
Always disconnect electrical power before servicing spa equipment and follow the manufacturer's instructions. Repairs involving suction safety components, electrical equipment or complex plumbing should be handled by qualified professionals.
COMMON SPA FITTING PROBLEMS
Water Leaking Around a Fitting
Leaks may develop from damaged seals, cracked housings, loose connections or deteriorated plumbing joints.
Identify the source of the leak before replacing a component. Water can travel along pipes and surfaces, making the actual leak location difficult to see.
Cracked or Damaged Plumbing Connections
Spa fittings can become damaged through mechanical stress, improper installation, freezing or exposure to incompatible chemicals.
A visibly cracked fitting generally requires replacement rather than a temporary surface repair.
Poor Water Flow
Reduced water flow can have several causes, including restricted filters, closed valves, blocked plumbing or pump-related problems.
A fitting should only be replaced after the source of the restriction has been identified.
Air Leaks or Reduced Airflow
In systems that use air-assisted jets, restricted or disconnected air plumbing may affect the amount of air mixed with the water.
Inspect accessible air controls, tubing and connections according to the spa manufacturer's maintenance instructions.
FIND THE RIGHT REPLACEMENT SPA FITTING
Finding the correct replacement starts with identifying the original component.
Before ordering, gather as much of the following information as possible:
- Existing part number or manufacturer
- Spa brand, model and year
- Photos of the fitting and its connections
- Measurements of the relevant connection points
- Number and arrangement of ports
- Information about the fitting's intended function
If you are unsure which component you need, Rising Dragon can help you review the available replacement options.
FREQUENTLY ASKED QUESTIONS ABOUT SPA FITTINGS
Are all hot tub plumbing fittings interchangeable?
No. Spa fittings may differ in size, connection style, material and intended application. Two fittings that appear similar may not connect to the same plumbing system. Always verify the original part number and connection dimensions before ordering.
What is the difference between a spa jet body and a spa jet internal?
The jet body is the stationary housing installed through the spa shell and connected to the plumbing. The jet internal is the removable component that directs the water into the spa. Replacing the internal does not necessarily require replacing the body.
How do I know what size spa fitting I need?
Check the original part number and manufacturer's specifications first. If those are unavailable, identify the connection style and measure the appropriate pipe, hose or fitting dimensions. Remember that nominal plumbing sizes may differ from actual measurements.
What does a spa manifold do?
A spa manifold distributes water or air from one supply line into multiple smaller connections. Manifolds are commonly used to connect several jets or other components to a shared plumbing supply.
What causes spa plumbing fittings to leak?
Leaks can result from cracked components, damaged gaskets, loose connections, deteriorated joints or improper installation. Identifying the exact leak location is important before choosing a replacement part.
Can I replace a spa fitting without replacing the entire plumbing system?
In many cases, yes. The extent of the repair depends on the fitting type, its condition and how it was installed. Some components are removable, while others require sections of connected plumbing to be replaced.
What is the difference between a slip fitting and a threaded fitting?
A slip fitting is designed to receive a compatible pipe or spigot connection and is typically joined using an appropriate bonding method. A threaded fitting connects through matching threads and requires the sealing method specified for that connection. These styles are not directly interchangeable.
What is the difference between water fittings and air fittings?
Water fittings carry or distribute water through the spa plumbing system. Air fittings connect or distribute air within compatible spa systems. Some jet assemblies use separate air and water connections that work together to create the desired jet stream.
Where can I buy replacement spa fittings?
Rising Dragon offers a selection of spa plumbing components, including unions, manifolds, suction fittings, air fittings and related replacement parts. Browse our online store to explore available products and compare specifications.
