Rising Dragon K150 Spa Light Controller | Pinnacle™ 2-Wire System | 150 POL | 1K150B-TA0TL
$89.99
$84.99

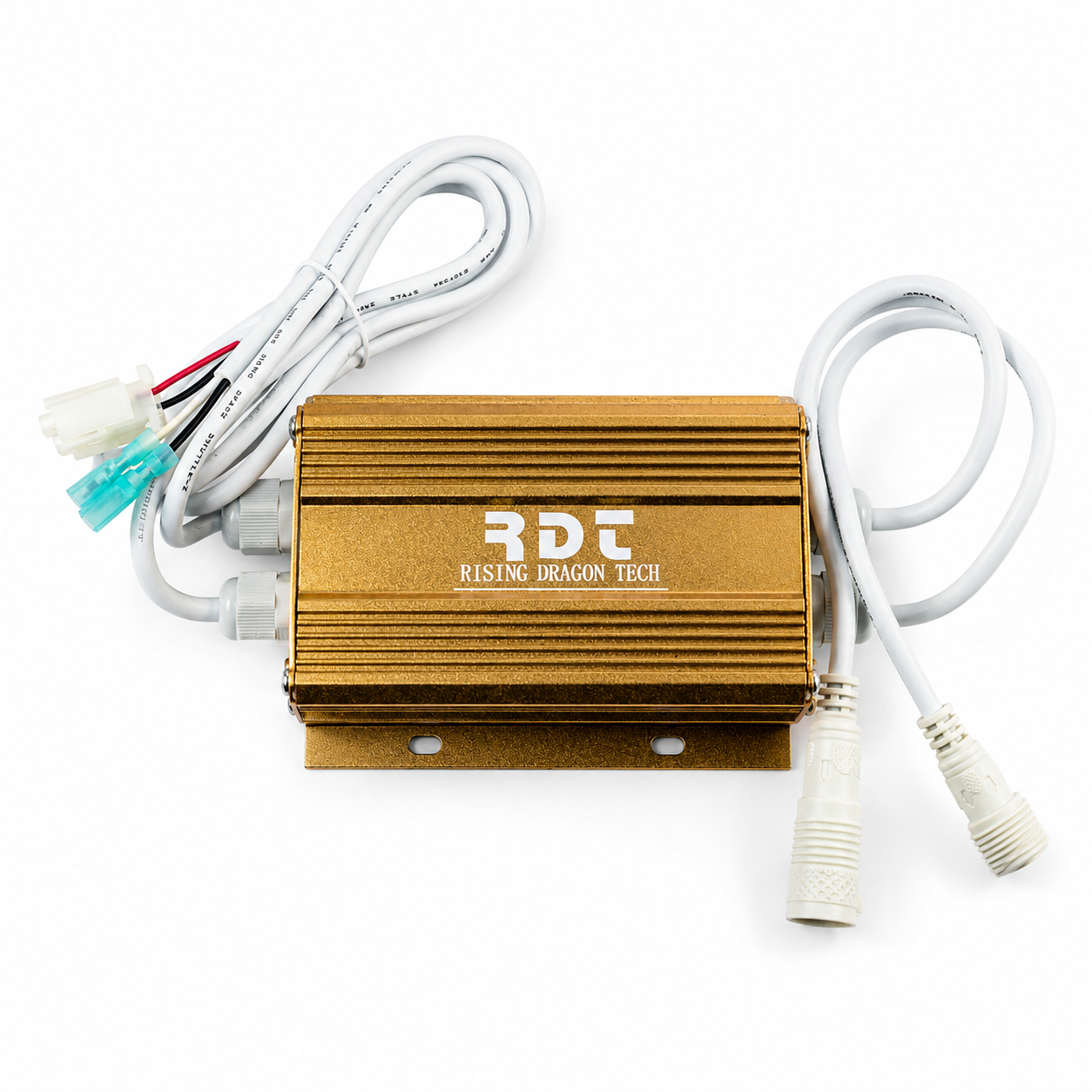

The Rising Dragon 1K150B-TA0TL K150 Spa Light Controller is designed to operate larger Pinnacle™ 2-wire LED lighting systems in spas and hot tubs.
If you're replacing a failed lighting controller or servicing an existing Rising Dragon Pinnacle system, the K150 provides control for up to 150 points of light, divided between two lighting lines with a maximum of 75 points per line. The controller connects to the spa's existing control system and requires an external power supply.
The Pinnacle platform uses a simplified 2-wire lighting architecture designed to reduce complicated wiring and hub layouts. Lights can be connected along the system's perimeter wiring using compatible harness connections, making the system easier to install and service than more complex lighting configurations.
Specifications
Part Number: 1K150B-TA0TL
Controller: K150
System: Pinnacle™ LED Spa Lighting
Wiring System: 2-Wire
Input: 12V
Output: 5V
Maximum Load: 20W
Maximum Points of Light: 150
Lighting Lines: 2
Maximum POL Per Line: 75
Application: Spa and hot tub LED lighting control
Power Supply: External power supply required
These electrical and capacity specifications are consistently reported by multiple current parts distributors.
Compatibility
This controller is intended for Rising Dragon Pinnacle™ 2-wire spa lighting systems.
Before ordering, confirm:
- Existing controller part number: 1K150B-TA0TL
- Your lighting system is 2-wire Pinnacle
- Required controller input/output matches your existing system
- Your spa's existing control system and power supply are compatible
- Connector configuration matches your existing controller
Not for Rising Dragon Evolution Plus™ 4-wire lighting systems.
The 1K150B-TA0TL is also reported by replacement-parts distributors as being commonly used in some Four Winds Spas and Clearwater Spas, but I would treat spa brand alone as insufficient for confirming compatibility.
If you're unsure whether this is the correct replacement, compare the part number and electrical connections on your existing controller before ordering.
Important Installation Note
The K150 controller connects to and is controlled by the spa's existing control system. An external power supply is required. Verify electrical specifications and system compatibility before installation.
frequently asked questions
Q: What lighting system does the 1K150B-TA0TL controller work with?
A: The 1K150B-TA0TL is designed for the Rising Dragon Pinnacle™ 2-wire spa and hot tub lighting system. It is not intended for Rising Dragon Evolution Plus™ 4-wire lighting systems.
Q: How many lights can the 1K150B-TA0TL controller support?
A: This controller supports up to 150 points of light (POL), with up to 75 points of light per output line.
Q: What are the electrical specifications?
A: The controller label specifies 12VAC signal input, 12VDC maximum 30W power input, and two 5VDC outputs rated at a maximum of 3.5A each.
Q: Does this controller have two lighting outputs?
A: Yes. The 1K150B-TA0TL has two 5VDC lighting outputs, allowing a compatible Pinnacle 2-wire lighting system to be divided between two lighting lines.
Q: Can I use this controller with a 4-wire spa lighting system?
A: No. This model is specifically a 2-wire light controller. If your spa uses a Rising Dragon Evolution Plus™ 4-wire system, you will need the appropriate 4-wire controller.
Q: How do I know if 1K150B-TA0TL is the correct replacement for my spa?
A: Start by checking the part number on your existing controller. We recommend confirming 1K150B-TA0TL, the 2-wire lighting system, electrical specifications, and connector configuration before ordering. If you're unsure, send us a clear photo of your existing controller label and connectors and we can help you compare them.
Q: Is the 1K150B-TA0TL certified?
A: Yes. The controller label identifies it as an ETL Listed/Intertek recognized component and states conformity to UL 1563 and certification to CSA C22.2 No. 218.1.
Q: Is this controller only for hot tubs and spas?
A: It is designed as a controller for compatible Rising Dragon Pinnacle 2-wire lighting systems, commonly used in spa and hot tub applications. Compatibility should be determined by the lighting system and electrical requirements rather than spa brand alone.
